Ultraflex Steering System T67
In stock
-
10 units available
Regular price
€83,75 EUR
VAT included
🕒 Order preparation: in 1 to 3 business days
Some products are located in external warehouses
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo
MPN
: 4343300

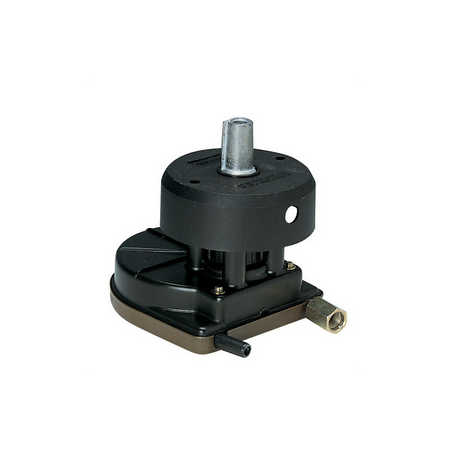

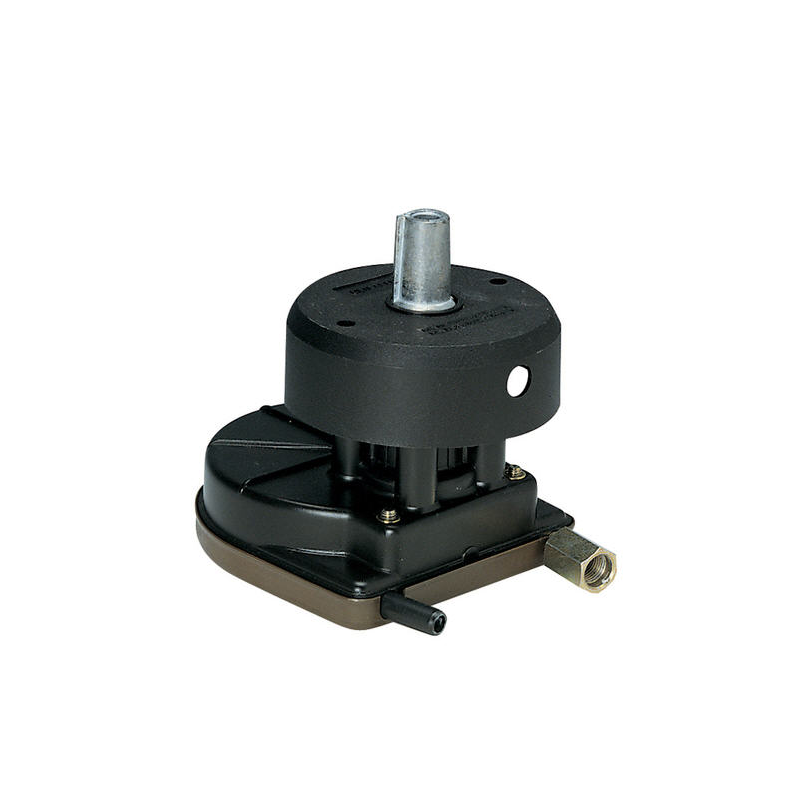

The Ultraflex T67 steering system, with an externally adjustable friction brake, uses the M58 single cable with a stainless steel end (choose the length you need), in a configuration compliant with ABYC P17. Built with marine corrosion-resistant materials. The 90° installation allows mounting in 4 different positions, so the cable can exit in the most convenient direction for your setup. Norske Veritas certified. Suited to boats with outboard engines up to 40 kW (55 HP), except the Evinrude E-TEC 50, for which T85, T71 or T91 is recommended.

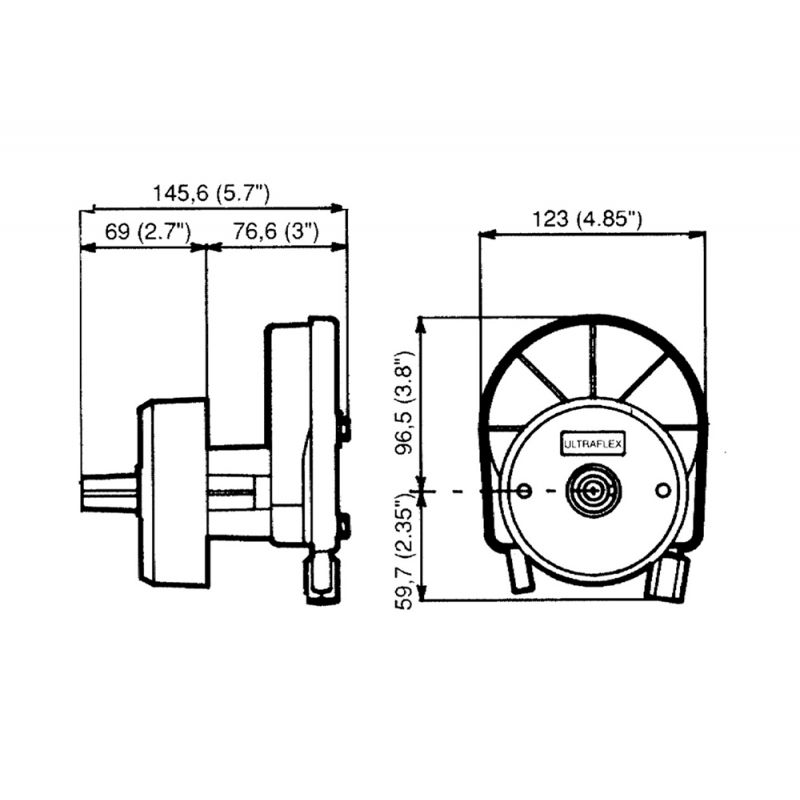

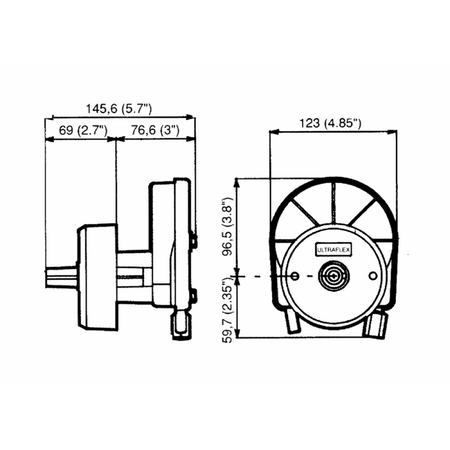

Technical specifications
- Steering wheel turns: 2.5
- Actuation stroke: 230 mm
- Maximum wheel diameter: 380 mm
- Minimum cable bend radius: 200 mm
- Maximum working load at the cable end: 1200 N (120 kg)
- Friction brake: standard, externally adjustable
- Mounting positions: 4
- Single cable: M58
- Use: outboard up to 40 kW (55 HP), excluding Evinrude E-TEC 50
- Standards: Norske Veritas, EN 29775, ABYC P17
