Ultraflex Front-Mounted Pump
In stock
-
2 units available
Regular price
€379,70 EUR
VAT included
🕒 Order preparation: in 1 to 3 business days
Some products are located in external warehouses
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo
MPN
: 4344620

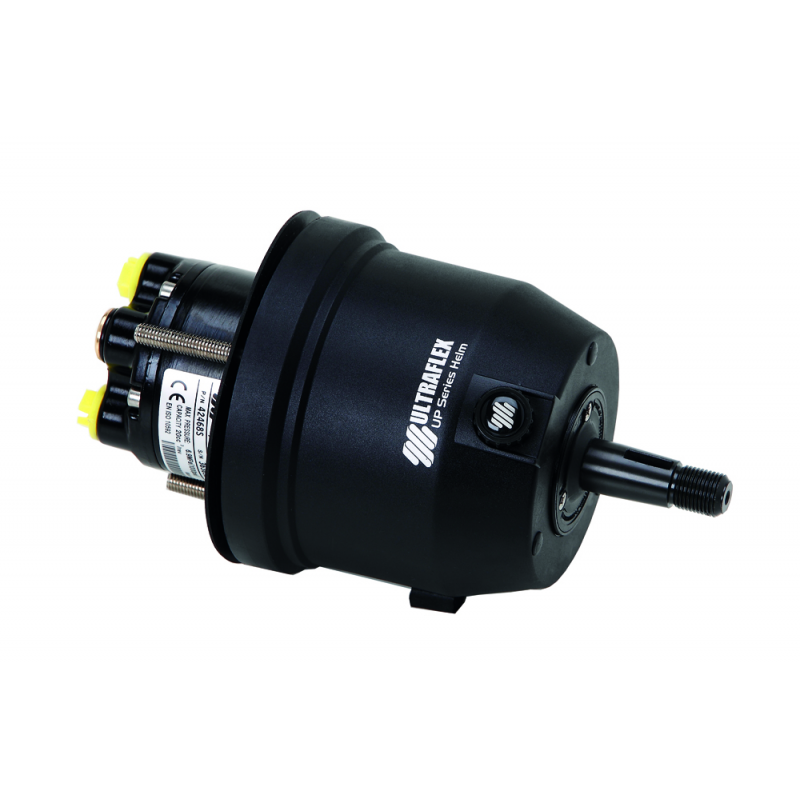

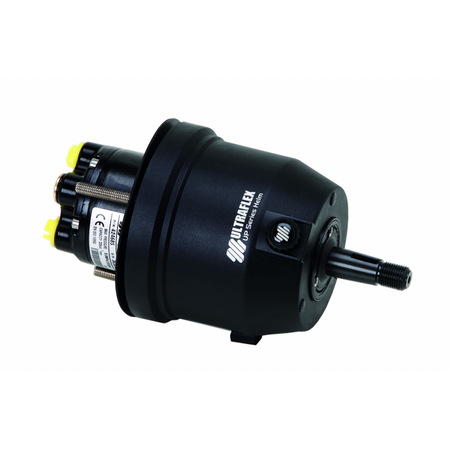

The Ultraflex front-mounted pumps for hydraulic steering come in the UP20F, UP25F, UP28F, UP33F and UP39F models. All have a check valve, which prevents the system from back-driving, and a pressure relief valve, with a 3/4" tapered shaft and elbow fittings for 3/8" hose. The UP20F has a corrosion-resistant composite reservoir and swivelling fittings. The UP25F, UP28F, UP33F and UP39F have a compact build with an axial piston system, a stainless steel shaft, a cast iron rotor for longer life and front oil filling, with 1/4" NPT fittings.
Technical specifications
- Mounting: front, semi-flush possible with flange
- Shaft: 3/4" tapered (stainless steel on UP25F–UP39F)
- Valves: check valve and pressure relief valve
- Fittings: elbow for 3/8" hose (swivelling on UP20F; 1/4" NPT on UP25F–UP39F)
- Reservoir: corrosion-resistant composite (UP20F)
- System: axial pistons, cast iron rotor, front oil filling (UP25F–UP39F)

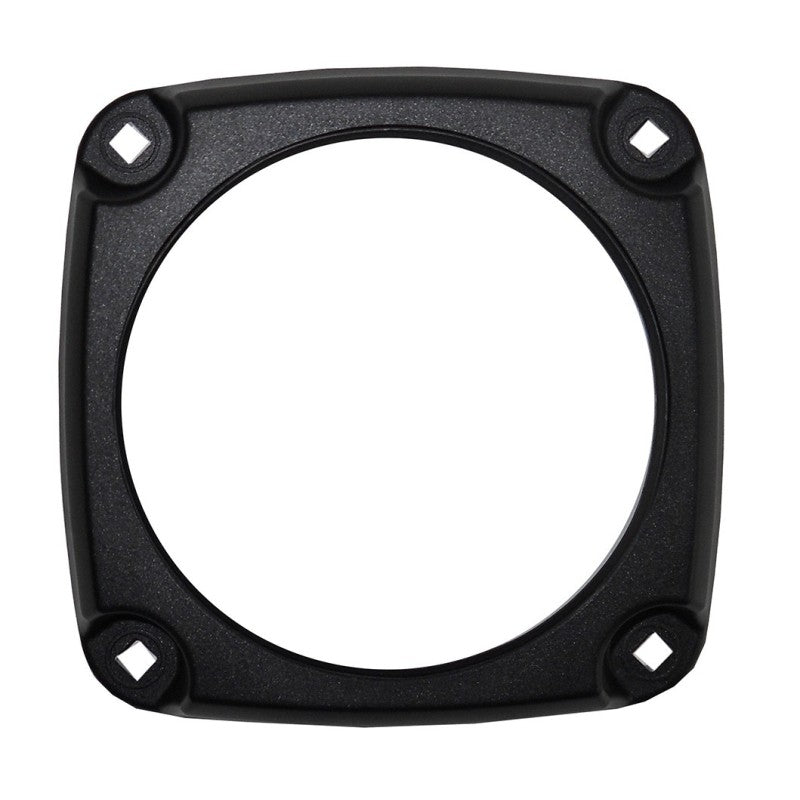

- Semi-flush flange: X74 for UP20F; X57 or X64 for UP25F–UP39F
How to choose
The UP20F is the pump in the Hytech OBF kits (up to 175 HP); the UP28F is the one in the Nautech 1 OBF kit (up to 300 HP). Compared with the UP20F, the UP25F, UP28F, UP33F and UP39F have a compact axial-piston build with a stainless steel shaft and a cast iron rotor.
What's included and what else you need
- The pump only: a complete steering system also needs a cylinder, hoses and hydraulic oil
- For semi-flush mounting you need the flange: X74 for the UP20F; X57 or X64 for the UP25F–UP39F
Frequently asked questions
Can I tilt the steering wheel?
Yes, with the X72 steering wheel adjustment system: 60° in total across 5 positions, suited to the UP25F, UP28F, UP33F and UP39F pumps.
What stops the system from back-driving?
The check valve fitted to all the pumps, together with the pressure relief valve.
What hose is needed?
The fittings are elbow type for 3/8" hose (1/4" NPT on the UP25F–UP39F).
