Raymarine Quantum Q24C with Data Cable
Not in stock: will be backordered
Regular price
€2.175,00 EUR
IVA inclusa
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo
MPN
: T70243

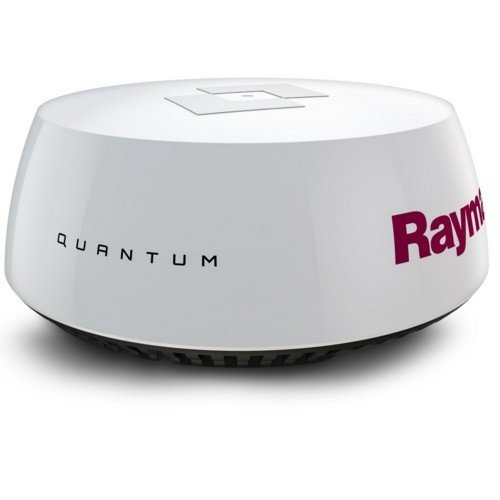

Quantum Q24C Radome w/Wi-Fi and Ethernet 10M Power and 10 Meter Data Cable included
Raymarine Quantum Radar, by FLIR, is the next generation of marine radar featuring CHIRP pulse compression technology.
Setting a new standard for compact solid state radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi and thin cabling simplifies installation plus Quantum’s energy efficient and lightweight design provides safe radiated emissions and substantially reduced power consumption.
Superior Radar Imaging
FLIR’s exclusive ATX™ advanced target separation technology displays targets like boats, landmarks, rocks, buoys, and weather cells with unsurpassed resolution and separation quality
CHIRP Pulse Compression
- Excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
- CHIRP Pulse compression ensures more energy reaches each target, resulting in superior imaging on long ranges
Small Target Detection
Quantum’s CHIRP Pulse Compression technology identifies small, weak targets, even when positioned close to strong returns.
Immediate Awareness
Quantum solid-state technology is ready to use in seconds, without any lengthy warm up period.
Simplified Installation
- Simple Wi-Fi connection between Quantum and any Raymarine LightHouse II powered MFD
- Quantum’s small diameter power cable is easy to route through tight spaces
- Easy to upgrade – Quantum uses the same bolt pattern as previous generation radars. Optional Quantum adapter cable eliminate the need to run new radar cables
Energy Efficient and Lightweight Design
- Weighs 50% less than traditional magnetron radars
- Safe Emissions thanks to Quantum’s low power solid state radar transmitter
- Very low power consumption (17 Watts transmit and 7 watts standby)
- Extended vessel battery life when under sail
General specifications:
| Input Voltage | 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V) |
| Networking | Wi-Fi or wired Ethernet (RayNet) |
| Antenna Type | Patch Array |
| Power Consumption | Transmit mode 17W; standby mode 7W; sleep mode 2W |
| Range | Scales From 1/16 to 24 nautical miles |
| Transmit Frequency | 9354 to 9446 MHz |
| Peak Power Output | 20W |
| Duplexer | Circulator |
| Pulse Widths (3 dB) | 40 ns to 14.7 μs |
| CHIRP Lengths | 400 ns to 20 μs |
| CHIRP Bandwidth | Up to 32 MHz |
| IF Bandwidth | 26 MHz |
| Noise | Less than 4 dB |
| Max. Range Scale | from 1/16 to 24 nautical miles |
| Beamwidth (nominal) | 4.9º horizontal and 20º vertical |
| Polarisation | Horizontal |
| Waterproofing | IPX6 |
| Weight | 5.6 kg (12.3 lb) |
