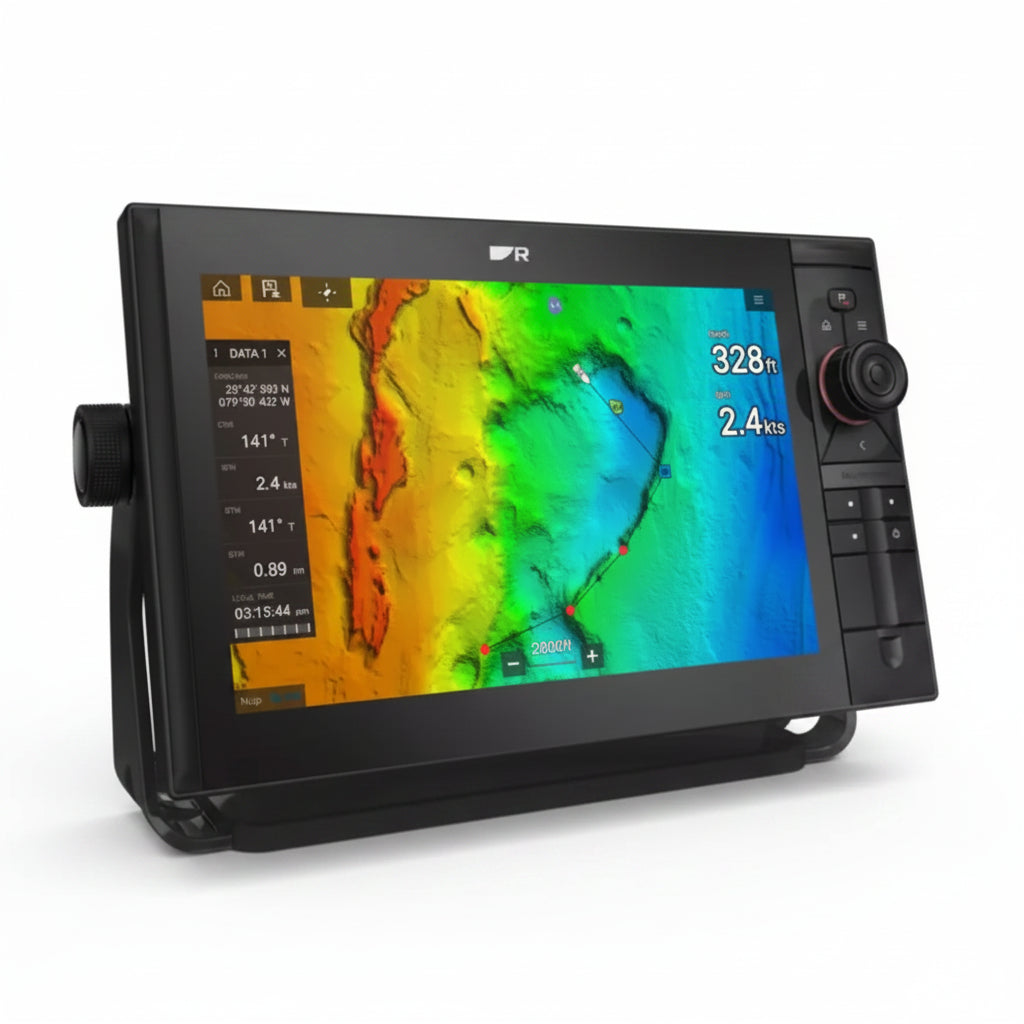

Raymarine Axiom 2 Pro 12 RVM — HybridTouch Multifunction Chartplotter with RealVision MAX Sonar and 1 kW CHIRP

The Axiom 2 Pro 12 RVM is Raymarine's 12-inch multifunction chartplotter built for serious offshore fishing and advanced navigation. It integrates HybridTouch charting, RealVision MAX multi-channel CHIRP sonar, a 1 kW fishfinder, and full compatibility with radar, autopilot, AIS, cameras and onboard audio systems in a single device.

12.1" IPS Display — 1,200 nits, sunlight readable

The 12.1" IPS panel (1,280 × 800 WXGA, 16:9) delivers 1,200 nits of brightness with 88° viewing angles on all sides. Raymarine's exclusive HydroTough™ nano-coating repels water for reliable touchscreen control even in difficult marine conditions. Smart backlighting with an ambient light sensor automatically adjusts display brightness for day and night navigation.

HybridTouch Control with interchangeable physical keypad

HybridTouch combines a capacitive touchscreen with a physical keypad for confident control even in rough seas. Interchangeable keypads let you choose between a dedicated Evolution autopilot keypad or user-programmable soft keys. The 6-core processor delivers fast startup and smooth navigation through LightHouse 4 OS.

Integrated RealVision MAX Sonar — 4 CHIRP channels

  • High CHIRP 200 kHz — traditional sonar to 366 m (1,200 ft)
  • DownVision™ 350 kHz — detailed bottom imaging to 183 m (600 ft)
  • SideVision™ 350 kHz — side imaging to 91 m (300 ft) per side
  • RealVision 3D 350 kHz — 3D bottom mapping to 91 m

Output power: 600 W RMS on the RealVision MAX port (25-pin connector). The 1 kW CHIRP port (11-pin connector, 42–250 kHz) reaches depths up to 914 m (3,000 ft). Transducer not included, sold separately (compatible with RVM-100, RVM-400, B175, B265 and others).

High-precision multi-constellation GPS/GNSS

Internal receiver supporting GPS, Galileo, GLONASS and Beidou at 10 Hz. SBAS/EGNOS accuracy: ≤ 5 m 95% of the time. TNC connector for optional external GPS antenna.

Full network connectivity

  • 2 × Gigabit RayNet ports (10/100/1,000 Mbit/s) | NMEA 2000 / SeaTalkNG adapter included
  • Dual-band Wi-Fi 2.4/5 GHz + Bluetooth 4.0 | Micro HDMI output | BNC video input | RCA audio
  • USB Micro B, 64 GB internal storage, 2 front-facing MicroSDXC slots

Technical specifications

  • Dimensions (bracket mount): 388.5 × 246.13 × 233.4 mm (15.3" × 9.69" × 9.18")
  • Dimensions (flush mount): 358.03 × 222.8 × 233.4 mm (14.1" × 8.77" × 9.18")
  • Power: 8–32 V DC, rated 12/24 V | 29.88 W at 12 V | 15 A fuse | IPx6, IPx7 | -25 °C to +55 °C
  • Multi-touch: up to 16 simultaneous touch points

System compatibility

Compatible with Quantum 2 and Cyclone radar, Evolution autopilots, CAM300 cameras, AIS700 transceiver, Ray73 VHF, i70s and Alpha instruments. Supports Mercury SmartCraft and Yamaha Command Link engine integration. Stream Netflix and Spotify via LightHouse apps. Remote control via Raymarine app with YachtSense Link router.

In the box

Display, user-configurable keypad, suncover, gasket, 2 trunnion knobs + bracket, DeviceNet–SeaTalkNG adapter cable 1 m, RayNet (F)–RayNet (F) network cable 2 m, power/video/audio cable 1.5 m, 4 mounting screws, documentation.
