Home » Quick SBC 500 NRG+ FR Battery Charger 40A 12v
SKU: QUSBC_500_NRG+_FR

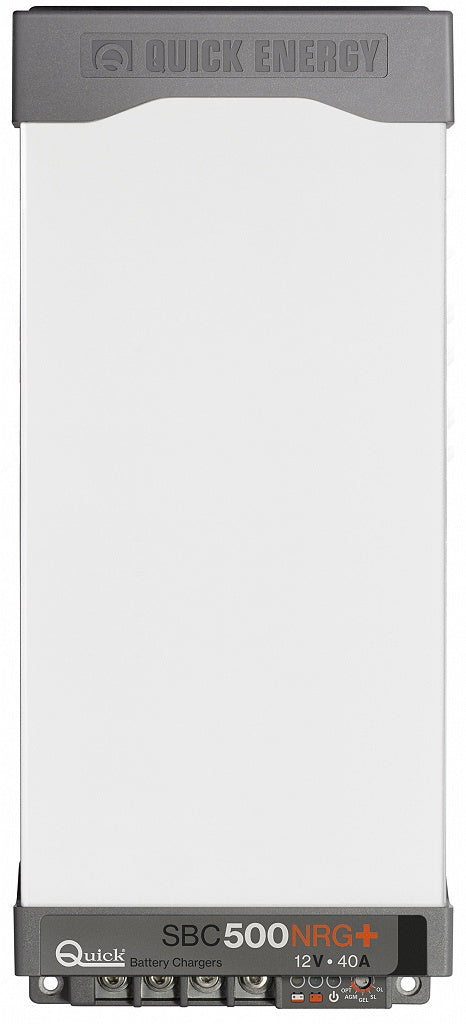

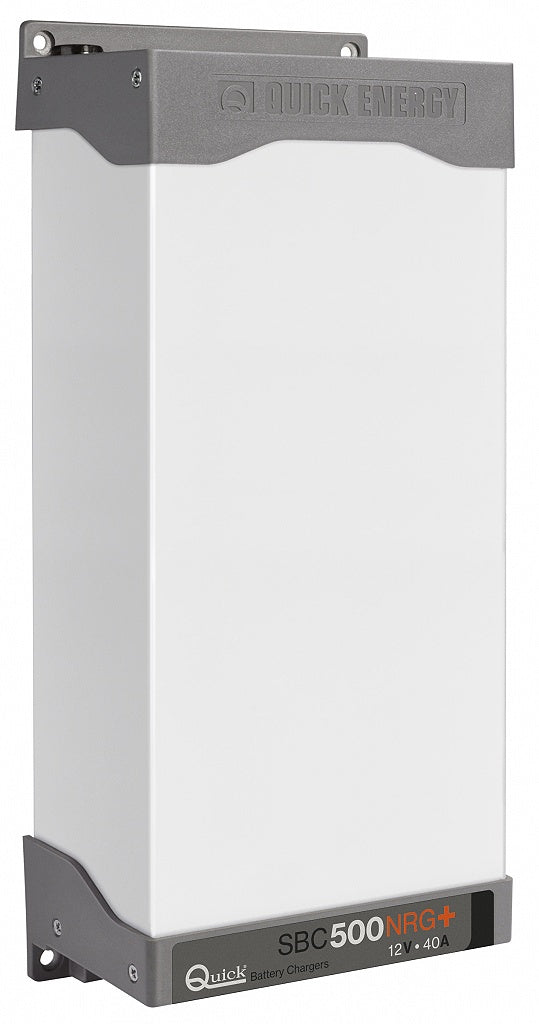

Quick SBC 500 NRG+ FR Battery Charger 40A 12v

Quick
Not in stock: will be backordered
€700,00 EUR incl. VAT

MPN: SBC_500_NRG+_FR

BATTERY CHARGER - SBC 500 NRG+ FR

MINI / LOW POWER +

Max output current 40 A
Charge voltage 12 V



  • Three stage IUoU battery charging.
  • High efficiency.
  • Multiple outputs in order to charge more groups of batteries.
  • Differentiated charging for liquid electrolite (open or sealed), gel, AGM or Optima® batteries.
  • Integrated output fuse inside the battery charger.
  • Capacity of supplying full power with low AC mains voltage.
  • Low residual ripple on output.
  • Universal AC supply input
  • Power factor (cos ϕ) equal to 1.
  • Variable speed of the cooling fan.
  • Compatible with the generators.
  • Short circuit, overloading, output overvoltage and overheating protection.
  • Can work in a wide range of ambient temperatures.
Safety classification EN 60335-2-29
EMC Class EN 55022/A
FCC TITLE 47 PART 15  SUBPART B CLASS A
The new SBC NRG+ battery chargers are more compact and equipped with connectors which make their connection easy and practical. Thanks to their efficiency (up to 92%), they are capable of offering a much lower consumption, a lower heat emission and a greater system’s reliability.
Mini and Low Power models SBC NRG 500 PLUS FR
Max output current (1) 40 A
Charge absorption voltage 14.1 Vdc OL • 14.4 Vdc SL/GEL/AGM • 14.7 Vdc Optima®
Charge float voltage 13.4 Vdc OL - 13.6 Vdc AGM - 13.8 Vdc SL/GEL/Optima®
Number of outputs (2) 3
Supply voltage (3) 264÷83 Vac con riduzione di potenza sotto 108 Vac
Frequency 45 ÷ 66 Hz
Efficiency (3) ≥ 87%
Max absorption (230/240 Vac) (3) 2.8 A
Max absorption (120 Vac) (4) (*) 5.4 A
Operating temperature -15°C ÷ +70°C, con riduzione di potenza lineare  sopra i + 45°C
-4°F ÷ +158°F, with linear power reduction over +122°F
Noisiness < 45 dbA @ 1 m
Dimensions  W x H x D 114 x 276 x 71 mm
4"31/64 x 10"55/64 x 2"51/64
Weight 1,8 Kg
3.53 lb

(1) Maximum value at normal use or in short circuit.
(2) Each output can supply the maximum value of nominal current.
The sum of the currents supplied from each output can not exceed the maximum nominal value of the equipment.
(3) With supply voltage equal to 230 Vac and output current equal to the maximum nominal value
(4) With supply voltage equal to 120 Vac and output current equal to the maximum nominal value

Dimensions

Mini / Low Power + - SBC 500 NRG+ FRSBC 500 NRG+ FR

Dimensions in mm (inch)
