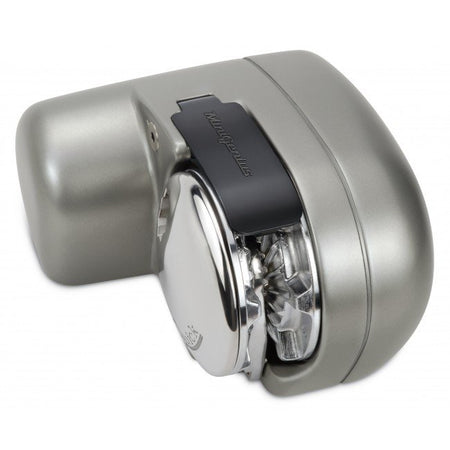

Quick Genius GP2 1500 500W No Drum 12v 8mm
Not in stock: will be backordered
Regular price
$1,366.00 USD
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
MPN
: GP21500-8
Quick Genius GP2 1500 500W No Drum 12v 8mm
- Horizontal on-deck windlasses
- Anodized alluminium in hard oxide base
- White composite material base (GP2 500)
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Available with manual Free-Fall system (GP2 500 only manual)
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox (GP2 1500-2000)
Gypsy and Drum
Ø 105 mm / 4" 9/64
For boats from 6 to 12 meters (20 - 39 ft)
 | 6 mm | 7 mm - 1/4" | 8 mm | 5/16" | |||||
 | 6 mm | 6 mm | 7 mm | 7 mm | 1/4" | 1/4" | 8 mm | 8 mm | 5/16" |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | |
 | 1/2" (12,7 mm) | ||||||||
| Standard version | GP2 1500 / D - GP2 1500 FF |
| Motor power | 500 W |
| Motor supply voltage | 12 V |
| Maximum pull | 680 Kg / 1499 lb |
| Maximum working load | 250 Kg / 551 lb |
| Working load | 85 Kg / 187 lb |
| Current absorption @ working load (1) | 76 A |
| Maximum chain speed (2) | 25,5 m/min / 83.7 ft/min |
| Maximum chain speed @ working load (2) | 10,3 m/min / 33.8 ft/min |
| Weight without drum | 10,2 Kg / 22.4 lb |
| Weight with drum | 11,5 Kg / 25.3 lb |
| Weight with FF | 10,9 Kg / 24 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
