Quick 1002 Remote Control 2 Buttons
MPN: HRC1002

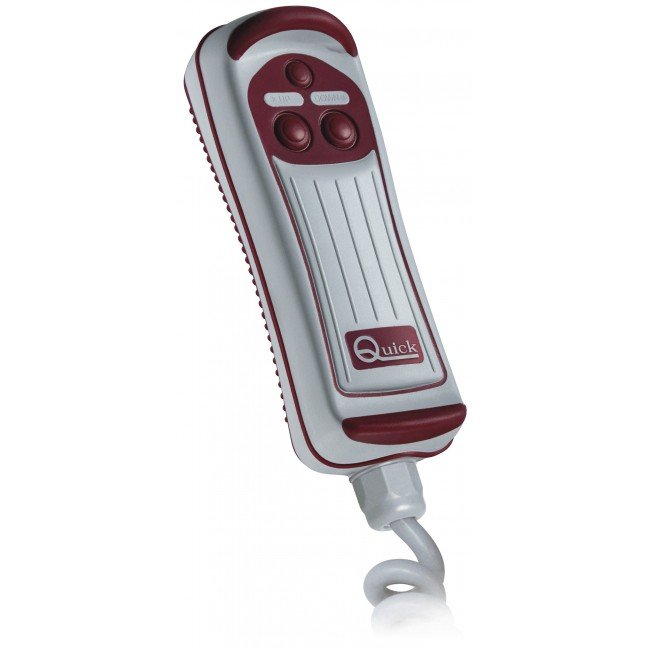

Multipurpose watertight hand held remote control
The main innovation of the multipurpose HRC hand-held remote control is the built-in LED lamp, facilitating operation in the dark.
This is the only hand-held remote in the nautical sector with this exclusive feature.

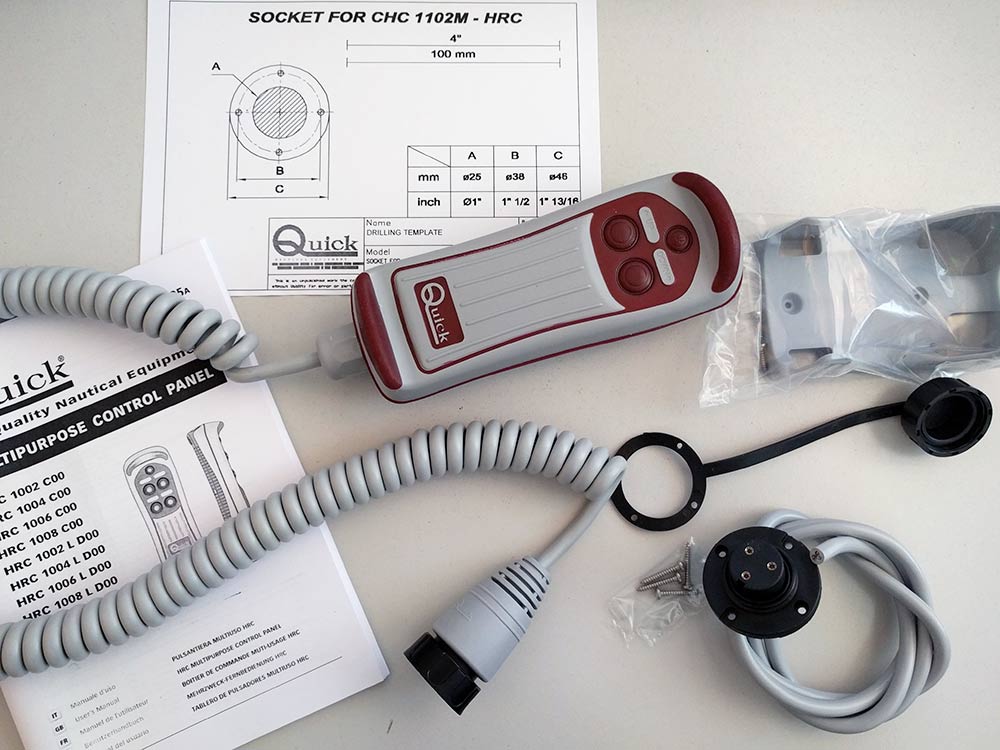

HRC is the new Quick range of multipurpose hand-held remote controls, designed to for remote operation of various on-board electrically operated equipment such as cranes, gangways, windlasses, sea ladders etc. HRC is constructed with rubber inserts to ensure high strength, long durability, perfect watertightness, and a secure grip. HRC remote controls are supplied complete with a connecting cable extensible up to 4.2 metres, a watertight deck plug and socket, and a support bracket for stowing after use.
Available with or without built-in LED lamp.
HRC units are maintenance-free.
HRC is a patented product.
| Model | HRC 1002 | HRC 1002 L |
| Current capacity of contacts (1) | 4 A | |
| Torch supply voltage (2) | 6 ÷ 30 Vdc | |
| Torch power absorption | 100 mA Max | |
| Operating temperature | -15°C ÷ +70°C (-5°F ÷ +158°F) | |
| Protection rating (3) | IP67 | |
| Weight - lb | 460 g 1.02 lb | 590 g 1.30 lb |
| 1) | On resistive load at 30 Vdc. |
| 2) | Only on models HRC 1002 L - HRC 1004 L - HRC 1006 L - HRC 1008 L. |
| 3) | With the plug correctly inserted into the socket. Excluding the area of the socket where the exit cable is fixed (IP 00). |
