Polmar – DB-54M Transceiver VHF/UHF Vehicle
Save 24%
Only 1 left
Regular price
€259,00 EUR
VAT included
Sale price
€259,00 EUR
VAT included
Regular price
€339,00 EUR
🕒 Order preparation: in 1 to 3 business days
Some products are located in external warehouses
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo
MPN
: PM002050

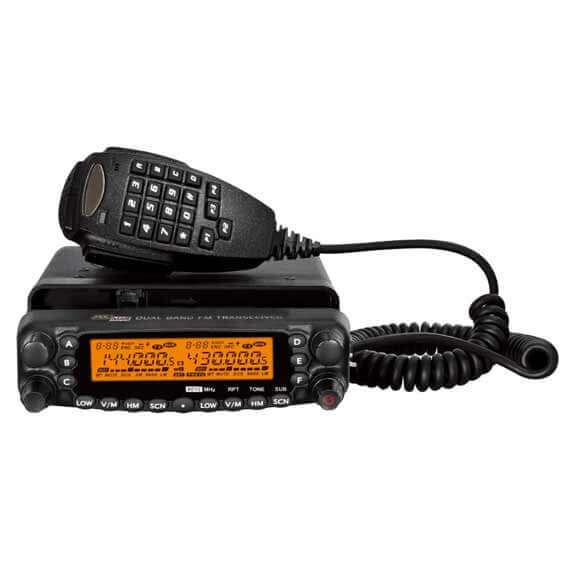

Polmar DB-54M VHF/UHF Transceiver
The Polmar DB-54M is a VHF/UHF vehicle transceiver designed to ensure high performance, reliability and ruggedness in amateur radio communications. Built with advanced technology, it ensures stable operation even under demanding operating conditions.
The unit offers full duplex operation on both bands with independent volume and squelch controls, providing maximum flexibility of use. It has 50W of power on the VHF band and 40W on the UHF band, with RF power adjustable across four levels. The large LCD display with adjustable brightness and the remotable front panel make it easy to install and manage on board the vehicle.
The Polmar DB-54M offers 800 programmable channels with the ability to assign a name to each one, bandwidth selection (25 or 12.5 kHz) and advanced functions such as Cross Band and Dual Watch (VV, UU, VU). It also includes CTCSS and DCS encoder and decoder for every channel, call identification 2-tone/5-tone, DTMF and ANI, and the 1750 Hz Tone Burst function. The Transponder and Audio Compander functions round out the equipment for superior audio quality.
Supplied complete with DTMF microphone, power cable, mounting bracket, front panel separation kit, screws, spare fuses and bilingual manual (Italian and English). A professional unit, ideal for those who require clear, stable and reliable communications.
Technical specifications
| Frequency range | TX/RX: 144 ~ 146 MHz / 430 – 440 MHz |
| Number of channels | 809 |
| Channel spacing | 0.5 / 2.5 / 5 / 6.25 / 10 / 12.5 / 25 / 37.5 / 50 / 100 kHz |
| Operating temperature | -20 to +60 °C |
| Operating voltage | 13.8V |
| Dimensions | 140 × 41.5 × 168 mm |
| Weight | 1 kg |
| RF power | VHF: 50W – UHF: 40W |
| Current draw | VHF: 8.5A – UHF: 8A |
With its advanced functions and solid construction, the Polmar DB-54M represents an excellent choice for amateur radio operators looking for a versatile, powerful and reliable unit for clear, continuous communications.
