Marco UP2/E Electronic water pressure system 12 l/min 12/24V
Not in stock: will be backordered
Regular price
€144,00 EUR
VAT included
Questions about this product? Contact us
FAQ
When does the delivery take place?
Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.
What are the warranty terms?
All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.
Can I return a product?
You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.
B2B
Sei un'azienda? Compila il modulo per la fatturazione
Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:
Vai al modulo
MPN
: 16466015

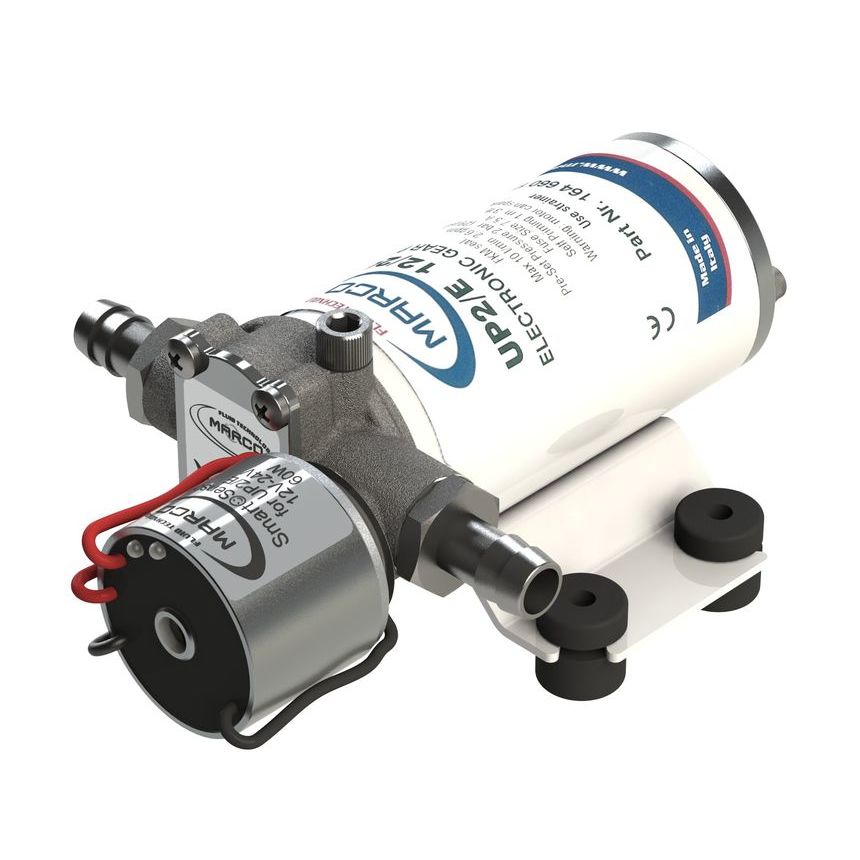

Marco UP2/E is a 12/24 V electronic water pressure system for the fresh water supply on boats, yachts, dinghies and campers. It is a self-priming pump with helical gears, an integrated check valve and electronic pressure control: the sensor adjusts the motor speed to the water demand and keeps the pressure constant. Flow rate 12 l/min, pressure 2 bar, nickel-plated brass body and stainless steel shaft. Marco code 16466015.
Main features
- Universal 12/24 V DC supply: the same model works on 12 V and 24 V systems
- Constant pressure thanks to variable-speed electronic control
- Self-priming up to 1.5 m, with integrated check valve
- Automatic stop when the water runs out, plus short-circuit and overvoltage protection
- Gradual motor start-up: less noise and less electrical interference
- LED indicators for operating status
- Nickel-plated brass body, stainless steel shaft, 3/8" BSP ports
Technical specifications
| Feature | Value |
|---|---|
| Model | Marco UP2/E |
| Marco code | 16466015 |
| Voltage | 12/24 V DC |
| Flow rate | 12 l/min |
| Pressure | 2 bar |
| Priming height | 1.5 m |
| Hose diameter | 12 mm |
| Ports | 3/8" BSP |
| Motor power | 90 W |
| Fuse | 7.5 A |
| Weight | 1.3 kg |
| Materials | Nickel-plated brass body, stainless steel shaft |
Where it is used
Water pressure system for fresh water installations and shower systems on motor boats, sailing boats, yachts, dinghies and campers. With 12 l/min it suits compact installations with few outlets open at the same time, for example a sink and a shower. For larger installations or several simultaneous outlets, see the Marco UP3/E 15 l/min. The model is also available with a control panel.
UP2/E or UP3/E: which one to choose
| Feature | UP2/E | UP3/E |
|---|---|---|
| Flow rate | 12 l/min | 15 l/min |
| Pressure | 2 bar | 2.5 bar |
| Motor power | 90 W | 150 W |
| Fuse | 7.5 A | 15 A |
| Hose diameter | 12 mm | 13 mm |
| Weight | 1.3 kg | 2 kg |
| Voltage | 12/24 V DC | 12/24 V DC |
| Priming height | 1.5 m | 1.5 m |
| Ports | 3/8" BSP | 3/8" BSP |
The UP2/E is the choice for compact installations and low power consumption. The UP3/E offers more flow and more pressure for installations with several outlets open at once.
Frequently asked questions
Does the UP2/E work on both 12 V and 24 V?
Yes. The supply is universal 12/24 V DC: you do not need different versions for 12 V or 24 V systems.
Is a pressure tank needed?
In most installations it is not, because the electronic control keeps the pressure constant. With short, rigid pipes or solenoid valves, an expansion tank of at least 0.5 l is recommended to avoid water hammer.
Which fuse should I fit?
A 7.5 A fuse.
What happens if the water tank runs empty?
The pump stops automatically when there is no liquid.
What is the difference between the UP2/E and the UP3/E?
The UP3/E delivers 15 l/min instead of 12, works at 2.5 bar instead of 2 and has a more powerful motor (150 W versus 90 W). Both are 12/24 V, self-priming and electronically controlled.
