Jabsco Delux DR 17'

Jabsco
Out of stock
€1.129,90 EUR IVA inclusa
Volt
Water
Questions about this product? Contact us

Message sent. We will get back to you as soon as possible.

FAQ

When does the delivery take place?

Delivery times vary depending on the country and destination postal code. They will be shown at checkout and apply only to products currently in stock.
In some cases, the indicated stock includes items stored in external warehouses, and order processing may take up to 4 working days before shipping.
For products marked as Not in stock, processing may take between 5 and 15 days. If delays occur, our customer service will contact you with timely updates.

What are the warranty terms?

All our products come with a 24-month legal warranty. Some brands provide extended warranty. Contact us for more info.
Click here for more information.

Can I return a product?

You have the right to return a product within 14 days from delivery, as stated in our Refund Policy. Return shipping costs are the responsibility of the customer. Items must be returned in their original condition and packaging. Please contact us before returning.

B2B

Sei un'azienda? Compila il modulo per la fatturazione

Clicca sul pulsante qui sotto per inserire i tuoi dati aziendali:

Vai al modulo
MPN : 58040-3024

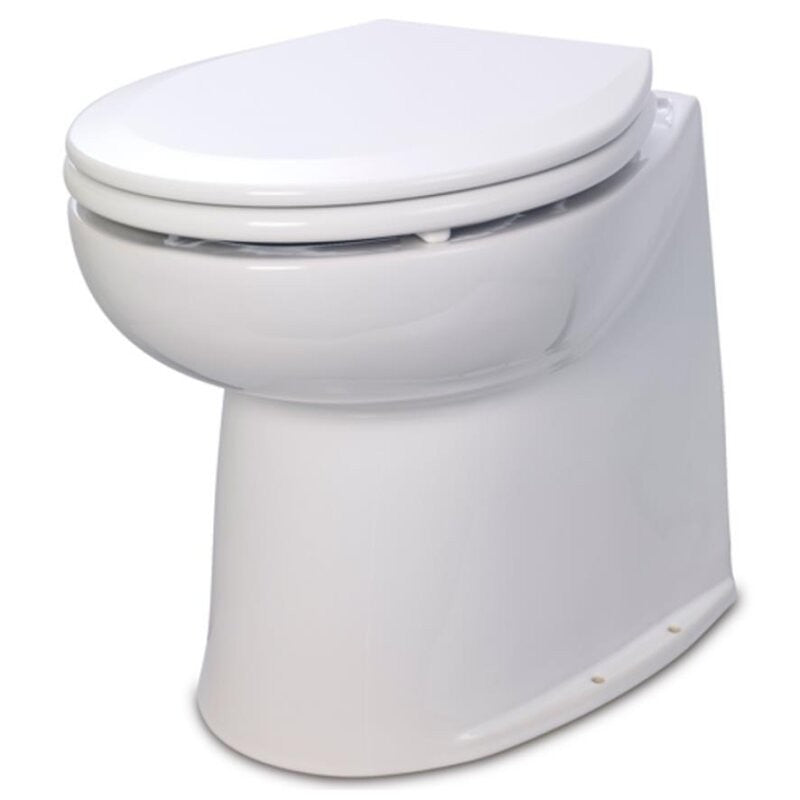

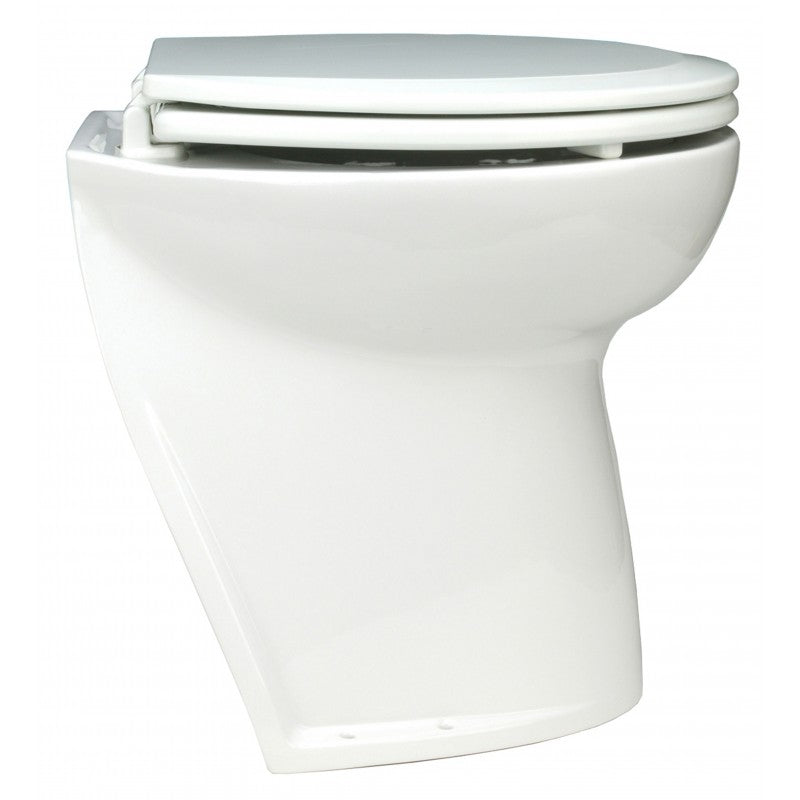

Jabsco Electric Marine Toilet – Quiet and High Performance

The Jabsco electric toilet in white ceramic combines quiet operation, compact design, and high performance for superior onboard comfort. Available in freshwater or seawater versions, powered by 12 V or 24 V.

Main Features

  • Flush controlled via touchpad unit with four flush options
  • Water consumption: approx. 1.0–2.5 L per cycle
  • Quiet operation with high-performance pump and mechanical seal
  • Compact installation in white ceramic
  • Freshwater version: connects to pressurized water system (min. 11 L/min)
  • Seawater version: includes PAR-MAX 2.9 self-priming pump

Available Versions

Version Flush Type Connections Included Components Current Draw Fuse Dimensions (W × D × H)
Fresh Water Pressurized Inlet: 13 mm (1/2") or 15 mm JG Speedfit
Outlet: 38 mm (1-1/2")		 Solenoid valve, touchpad panel with blackbox and wall mount 10 A 15 A 37.5 × 45.0 × 44.5 cm
Sea Water Self-priming Inlet: 19 mm (3/4")

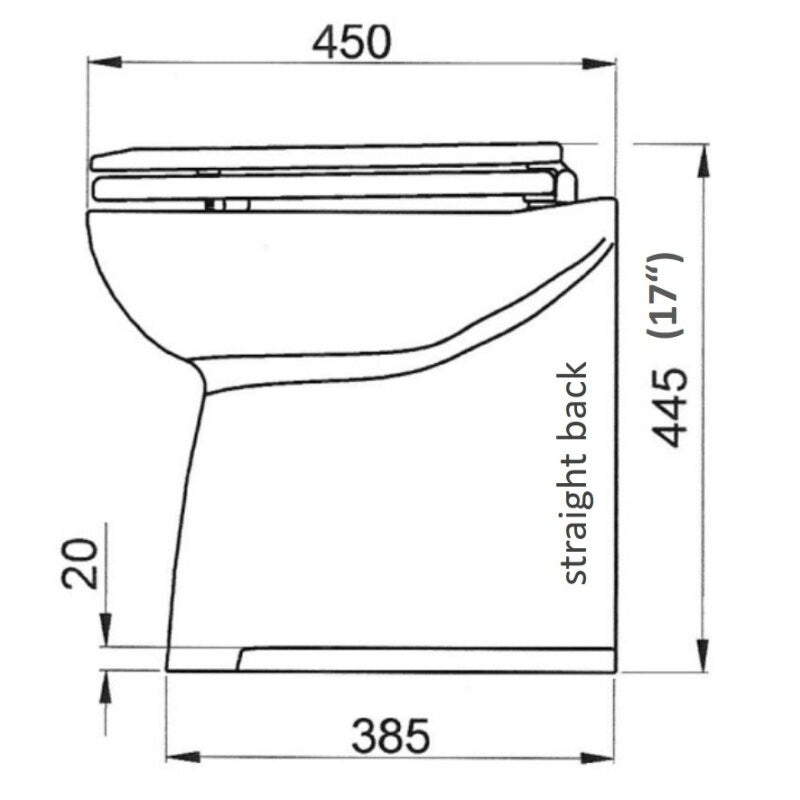

Outlet: 38 mm (1-1/2")		 PAR-MAX 2.9 pump, touchpad panel with blackbox and wall mount 20 A 25 A 37.5 × 45.0 × 44.5 cm

Common Specifications

  • Material: white ceramic
  • Voltage: 12 V or 24 V
  • Water consumption: 1–2.5 L per flush
  • Ideal for yachts, sailboats, and motorboats
