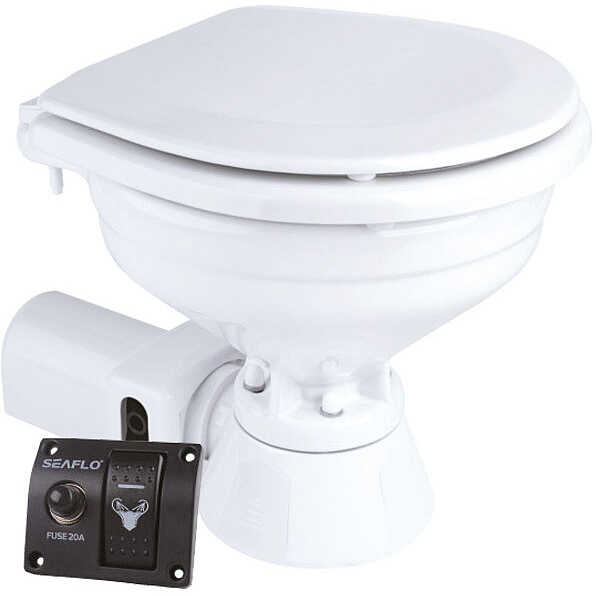

Seaflo Electric Toilet Compact
Electric Marine Toilet with Integrated Macerator and Ceramic Bowl
The Seaflo Electric Toilet Compact is an electric marine toilet with a compact design, equipped with a dual-function pump with integrated macerator and a control panel with push-button switch included. The ceramic bowl and lacquered white wood seat ensure hygiene and easy cleaning on board. All materials are fully corrosion-resistant for marine use.
The Compact version is specifically designed for confined spaces on board, without compromising on the performance of a complete electric discharge system. The control panel with push-button switch makes operation simple and immediate under any navigation condition.
Available in 12V supply (model 600952, current draw 20A) and 24V (model 600954, current draw 10A). The 26mm (1") outlet hose is compatible with an adapter for 38mm (1½") hoses, ensuring installation flexibility across different on-board plumbing configurations.
Technical Specifications

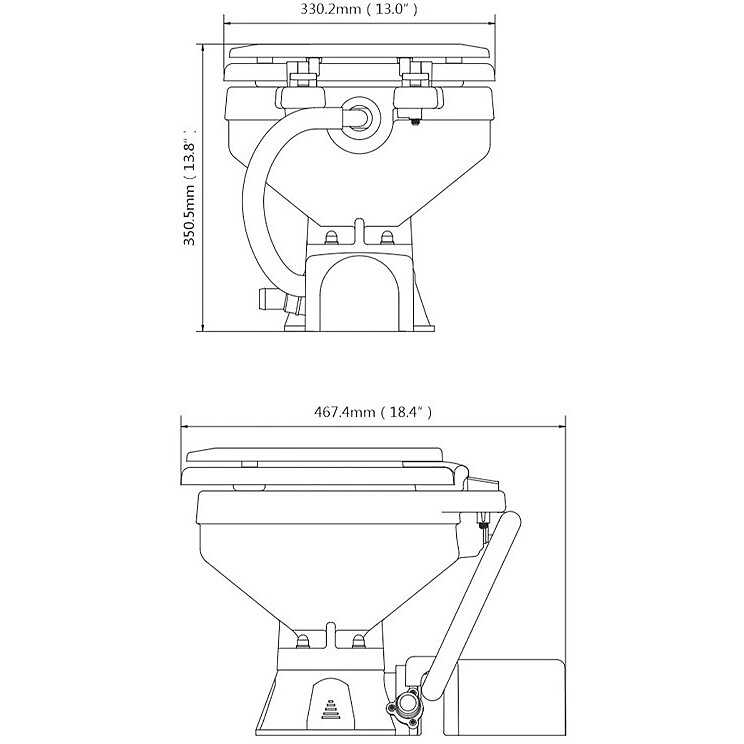

| Model | Voltage | Bowl type | Seat and lid | Amp | Dimensions (mm) | Ø inlet hose | Ø outlet hose |
|---|---|---|---|---|---|---|---|
| 600952 | 12V | Compact | Lacquered white wood | 20 | 330 x 468 x 350h | 19mm – ¾" | 26mm – 1" (adapt. 38mm – 1½") |
| 600954 | 24V | Compact | Lacquered white wood | 10 | 330 x 468 x 350h | 19mm – ¾" | 26mm – 1" (adapt. 38mm – 1½") |
