Compact Moxon antenna for the 4-metre band

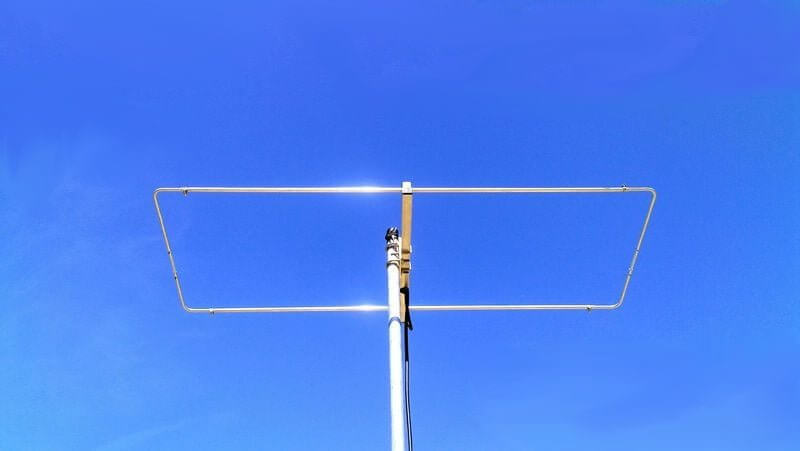

The EAntenna 70MOX is an extremely compact directional antenna designed specifically for the 4-metre band (70 MHz). Thanks to its Moxon element configuration, it offers an excellent compromise between small size, high performance and easy installation.
Moxon design: high performance in a small footprint
The Moxon geometry achieves a very short boom length while maintaining a front-to-back ratio greater than 30 dB and a wide bandwidth. This makes the 70MOX particularly suited to installations where space is limited but real directional performance is required.
Direct 50 Ohm feed without balun
The antenna is designed with a native impedance of 50 Ohm, allowing the feed line to be connected directly to the radiator without using a balun. This solution eliminates additional losses and simplifies installation, improving the overall efficiency of the system.
Ideal for portable operation and DX expeditions
With low weight and a compact structure, the EAntenna 70MOX is particularly suited to portable operation, radio holidays and DX expeditions. Its compact packed dimensions make it easy to transport and handle even in complex logistical situations.
Rugged structure and resistance to environmental conditions
Despite its compact size, the antenna is designed to withstand severe environmental conditions, with a stated maximum wind speed of 220 km/h. Centre mounting ensures mechanical stability and easy integration on rotators.
Technical data
| Supported band | 4 m |
|---|---|
| Frequency range | 70.0 – 70.5 MHz |
| Antenna type | Directional antenna |
| Configuration | Moxon (2 elements) |
| Polarisation | Horizontal |
| Impedance | 50 Ohm |
| Balun | Not required |
| Maximum power | 10,000 W |
| Boom length | 86 cm |
| Turning radius | 1.2 m |
| Wind load surface | 0.03 m² |
| Antenna weight | 1.8 kg |
| Shipping weight | 3.5 kg |
| Maximum wind speed | 220 km/h |
| Mounting type | Centre mount |
