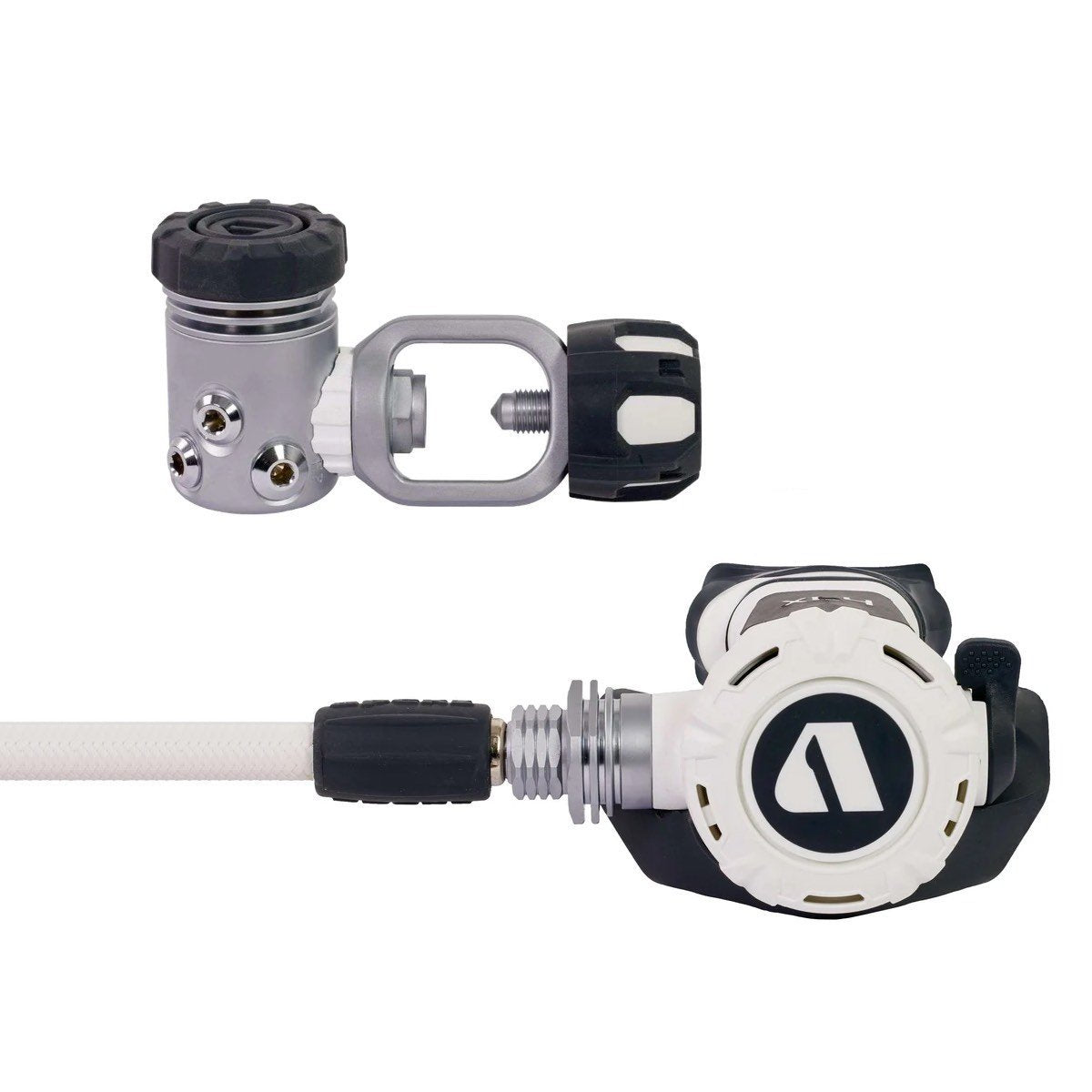

Apeks XL4+ INT (Yoke) Dive Regulator

The Apeks XL4+ is a compact lightweight regulator suitable for diving in all environments including cold water locations. Its design and low weight help reduce jaw fatigue on long dives. The XL4+ also makes an ideal stage regulator, perfect for the technical exploration diver with a large amount of equipment. The XL4+ regulator is a high-performance option for those technical divers serious about weight savings.

1st Stage

• Compact machined first stage based on the expedition tested Apeks DS4 platform.
• Break through, innovative over-moulded first-stage endcap and environmental diaphragm helps prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage.
• Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the first stage, resulting in improved cold water performance.
• Unique over-balanced diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth.
• With 2 HP ports and 4MP ports.

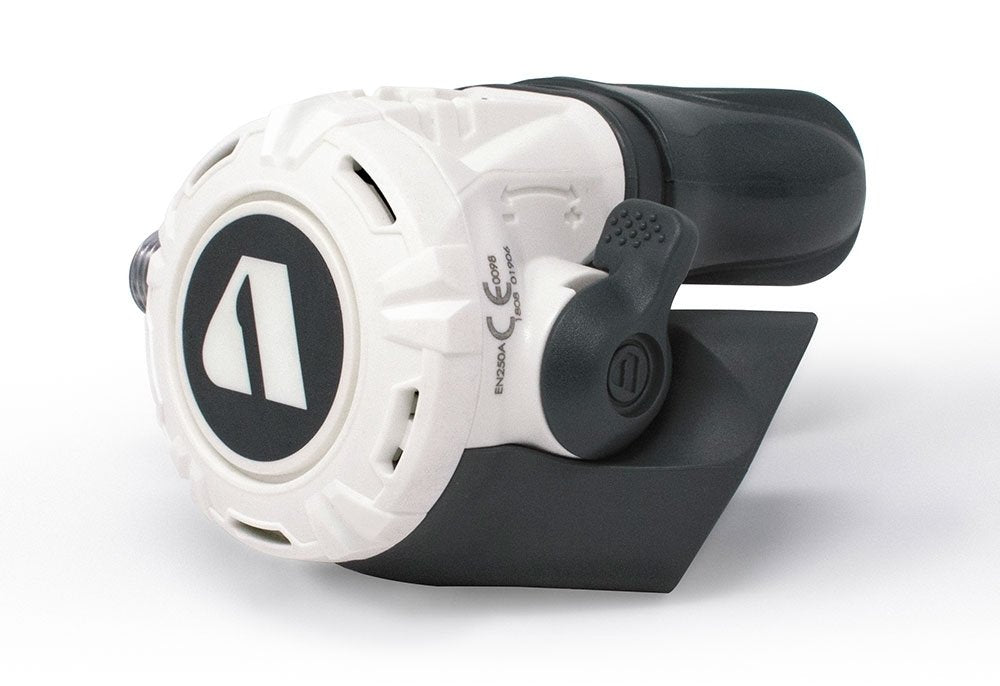

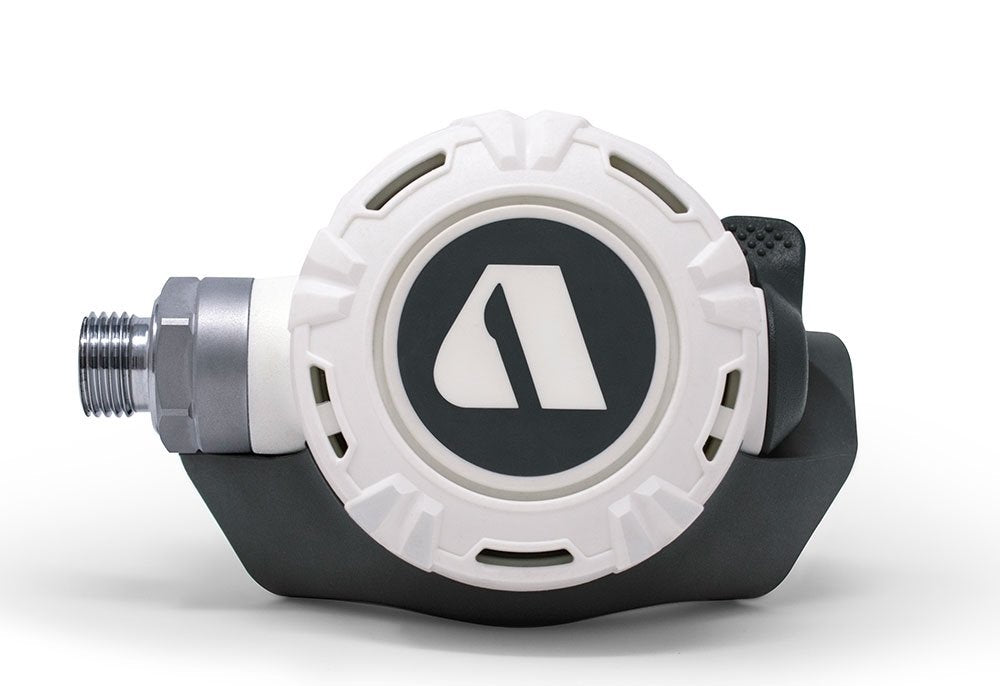

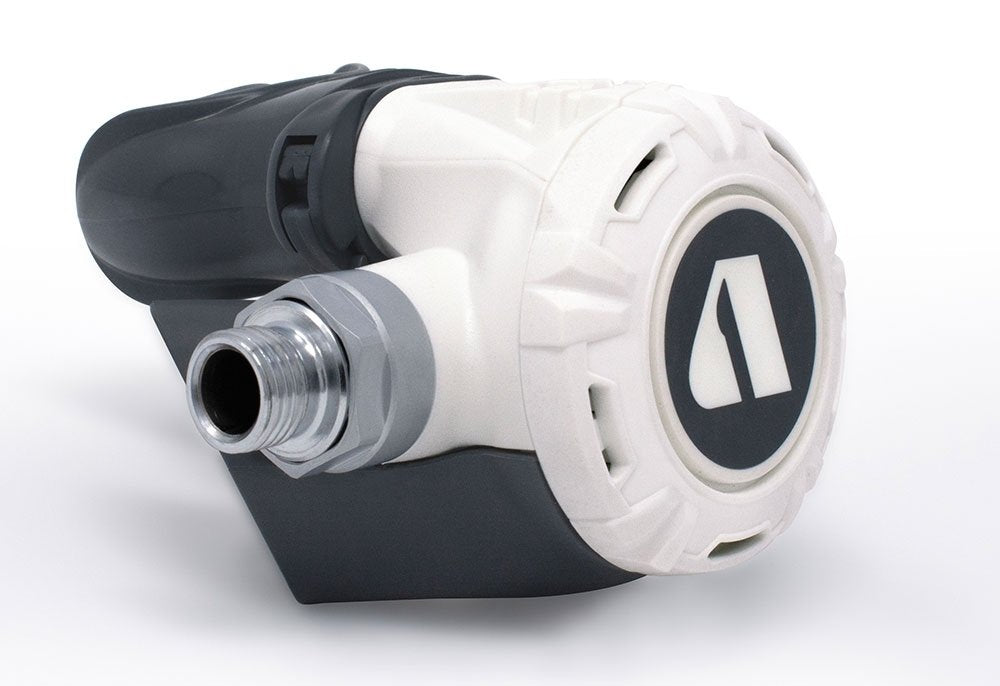

2nd Stage

• Compact and lightweight second stage improves comfort and helps reduce jaw fatigue on long duration dives.
• High performance pneumatically balanced lever operated poppet valve.
• Large, over moulded self-flushing and controllable purge button.
• Ergonomic Venturi lever is easy to use and locate.
• Flexible nylon braided hose has better cold water performance than a traditional rubber hose.
• Standard metallic hose connection for interchangeability.
• Comfo-bite mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place.
• Re-useable mouthpiece clip makes it simple to change mouthpieces in the field.
• Durable and flexible rubber exhaust tee provides excellent bubble diversion.
• UV inhibitors to help prevent discolouration of the white materials.

Connections	INT (Yoke)
Type of first stage	Over-balanced diaphragm design, environmentally sealed
Body Type	One piece forged body
Number of HP ports	2 (7/16" UNF)
Number of MP ports	4 (3/8" UNF)
Weight	Yoke – 1041g (2.3 lb)
Environmental Dry Kit	Standard
First stage exterior	Satin
Coldwater Use	Yes
Type of second stage	Pneumatically balanced
Opening Effort Control Knob	No
Integrated Venturi Lever	Yes
Mouthpiece	Comfo-bite™
Exhaust tee	Standard, one set
Heat Exchanger for freezing resistance	Yes
Hose type	Braided Flexi-hose
Overall work of breathing (WOB) scores	Avg. 0.90 joules/liter
Nitrox compatible	Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
