Quick Prince DP2 500W with Drum 12v 6mm
SKU: QUDP2512D-6

Quick Prince DP2 500W with Drum 12v 6mm

Quick
Nicht auf Lager: Vorbestellung
€1.152,00 EUR inkl. MwSt.

MPN: DP2512D-6

Quick Prince DP2 500W with Drum 12v 6mm

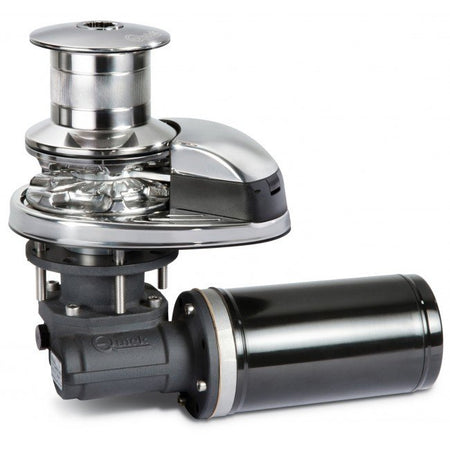

The Prince is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.



For   boats from 5 to 13 meters (16 - 43 ft)
DP2 300 W 5 - 7 m 16 - 23 ft
DP2 500 W 6 - 9 m 20 - 30 ft
DP2 700 W 7 - 10 m 23 - 33 ft
DP2 1000 W 10 - 13 m 33 - 43 ft





Gypsy
 6 mm 7 mm - 1/4" 8 mm 5/16"
Chain 6 mm 6 mm 7 mm 7 mm 1/4" 1/4" 8 mm 8 mm 5/16"
DIN 766 ISO DIN 766 ISO G4 BBB DIN 766 ISO G4
Rope 1/2" 1/2" 1/2" 1/2"


Additional info:

Standard version
 DP2 300 / 300 D DP2 500 / 500 D DP2 700 / 700 D DP2 1000 / 1000 D
Motor power 300 W 500 W 700 W 1000 W
Motor supply voltage 12 V 12 V 24 V 12 V 24 V 12 V 24 V
Maximum pull 815.7 lb 1455 lb 1499.1 lb 2050.3 lb
Maximum working load 264.5 lb 441 lb 485 lb 660 lb 705.5 lb 925.9 lb 1058.2 lb
Working load 88.2 Kg 143 lb 154 lb 220.5 lb 235.9 lb 308.6 lb 352.7 lb
Current absorbtion @ working load (1) 65 A 80 A 40 A 95 A 50 A 130 A 75 A
Maximum chain speed (2) 96 ft/min 95 ft/min 93 ft/min 75 ft/min 83 ft/min 102 ft/min 99 ft/min
Maximum chain speed @ working load (2) 80 ft/min 78 ft/min 80 ft/min 38 ft/min 47 ft/min 54 ft/min 63 ft/min
Weight - DP2 - [without drum] 23.4lb 21.6 lb 34.3 lb 36.8 lb
Weight - DP2 - [with drum] 25.8 lb 23.5 lb 35.9 lb 38.4 lb
