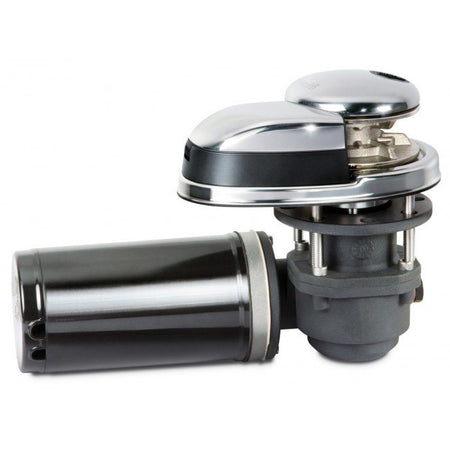

Quick Prince DP1 500W No Drum 12v 6mm
The Prince is a vertical application windlass perfect for boats with limited deck space. This unit is composed of AISI 316 stainless steel which is a durable element when dealing with harsh marine environments. This unit comes in different variations such as with or without the drum capstan for rope retrieval and various gypsy sizes for rope and chain retrieval. Additional features include an IP67 watertight motor, anodized aluminum gearbox, and inspection lid. This unit is sold complete with the windlass, solenoid unit, clutch handle and mounting hardware.
| For boats from 5 to 9 meters (16 - 29 ft) | |||
| DP1 | 300 W | 5 - 7 m | 16 - 23 ft |
| DP1 | 500 W | 6 - 9 m | 20 - 30 ft |
| Gypsy | 6mm | 6mm | 1/4" |
| Chain | DIN 766 | ISO | BBB |
| Standard version | DP1 300 / 300 D | DP1 500 / 500 D | |
| Motor power | 300 W | 500 W | |
| Motor supply voltage | 12 V | 12 V | 24 V |
| Maximum pull | 815.7 lb | 1455 lb | |
| Maximum working load | 264.5 lb | 440.9 lb | 485 lb |
| Working load | 88.2 Kg | 143.3 lb | 154.3 lb |
| Current absorbtion @ working load (1) | 60 A | 80 A | 40 A |
| Maximum chain speed (2) | 86.3 ft/min | 82.5 ft/min | 82.5 ft/min |
| Maximum chain speed @ working load (2) | 73.8 ft/min | 60 ft/min | 63.5 ft/min |
| Weight - DP1 - [without drum] | 16.7 lb | 16.7 lb | |
| Weight - DP1 - [with drum] | 18.5 lb | 18.5 lb | |
