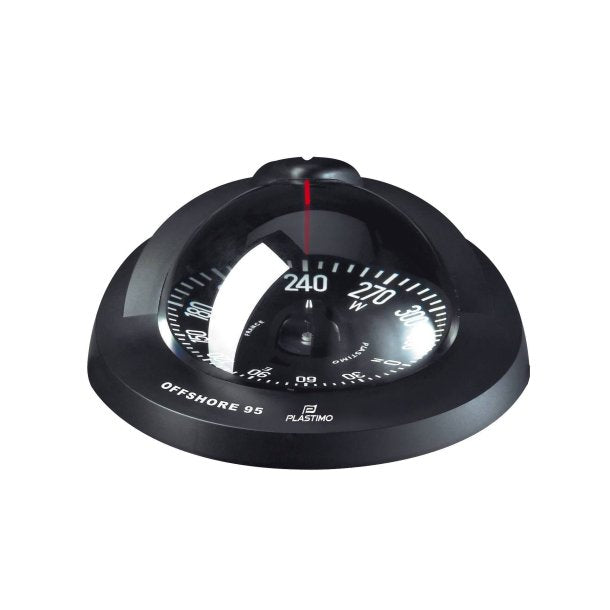

Plastimo Offshore 95 Bussola ad Incasso Nera, Rosa Piatta
Powerboats 6 to 10 m (19 to 33 ft).
Installation
• Flushmount on horizontal surface : compact design, interchangeable with Offshore 90 and most compasses of equivalent size.
• Bracket : broad and sturdy bracket base absorbs vibrations. Mounting can be done whatever the angle, provided that the compass and card unit remain horizontal at all times. Bracket-mount compass can also be removed when fitted with clip-plate.
Card
Outstanding legibility under all weather and light conditions for optimum comfort and accurate readings.
• Perfect stability of conical or flat card, 81 mm apparent diameter.
• Graduation every 5°.
Materials
• All parts fully UV-ray treated.
• Scratch resistant dome.
FEATURES
| Boat size | Powerboats of 6 to 10 m (19-33 ft). |
| Compass card | Conical or flat card graduated every 5°, apparent Ø 81 mm. |
| Mounting |
|
| Resistance to vibrations and hull pounding | Magnetic cell equipped with the unique "Vibration Absorber" system. |
| Lubber line | 1 lubber line, orange for instant recognition. |
| Compensation | Supplied as standard |
| Lighting | 12-24 V LED, included. |
| Supplied with | Clip-plate, screws, drilling template. |
| Approval/homologation | ISO 613 compliant |
Lighting : bulb is integrated in the bowl, thus spreading the illumination evenly and preventing eye strain and fatigue at night.
Access to compensation or lighting : easy, with unique flange-clip system.
Compensation can be adjusted from the outside, with no need to open the compass on the bracket version.
Watertight construction :
• One-piece moulded flange and bowl.
• Viton® diaphragm with extreme expansion and retraction capacity : compensates the fluctuations in fluid volume caused by differences in temperature and atmospheric pressure, preventing the formation of bubbles.
• Moulded-in sunken head screws.
