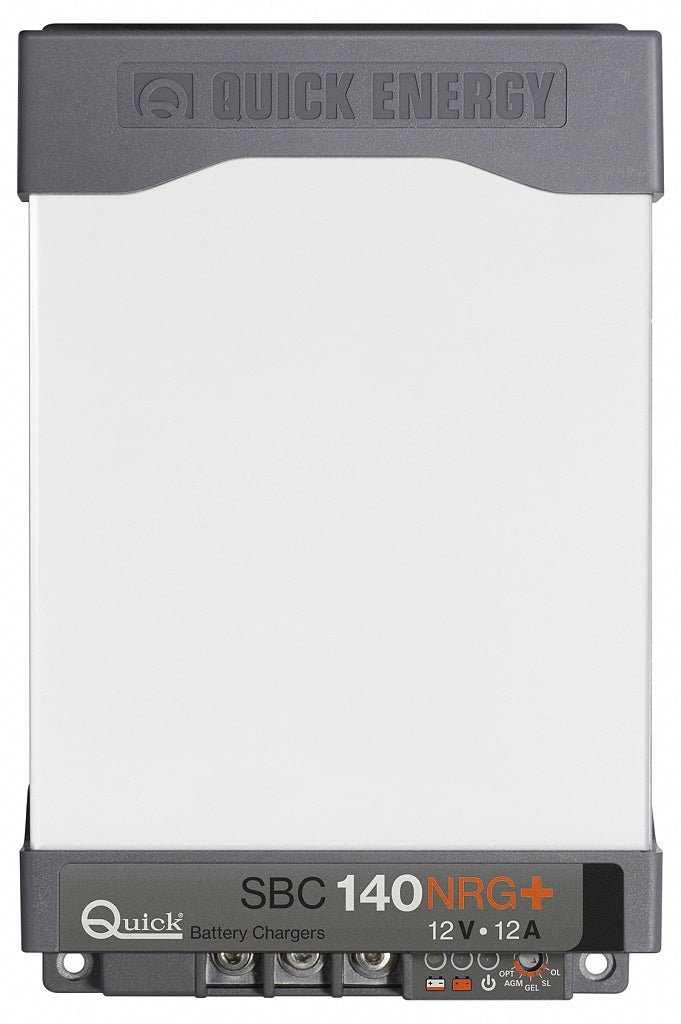

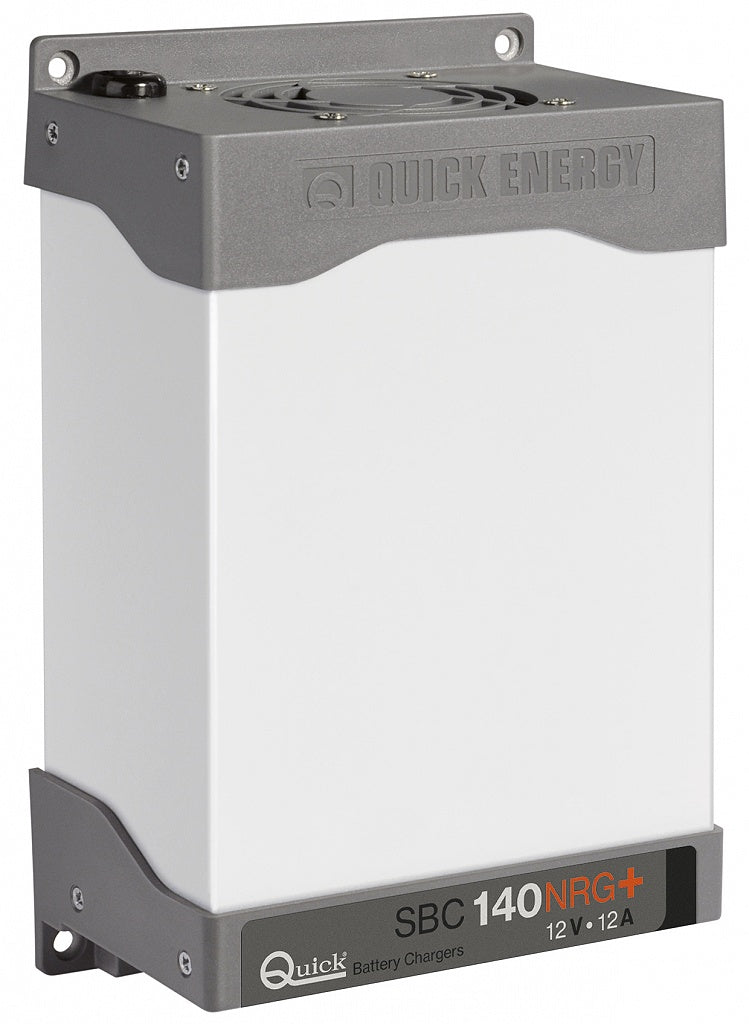

Quick SBC 140 NRG+ FR Chargeur de batterie 12A 12v
Disponible en précommande
Prix
€295,00 EUR
TVA incluse
Code fabricant
: SBC_140_NRG+_FR
CHARGEUR DE BATTERIE - SBC 140 NRG+ FR
MINI / FAIBLE PUISSANCE +
Courant de sortie max. 12 A
Tension de charge 12 V
- Three stage IUoU battery charging.
- High efficiency.
- Multiple outputs in order to charge more groups of batteries.
- Differentiated charging for liquid electrolite (open or sealed), gel, AGM or Optima® batteries.
- Integrated output fuse inside the battery charger.
- Capacity of supplying full power with low AC mains voltage.
- Low residual ripple on output.
- Universal AC supply input
- Power factor (cos ϕ) equal to 1.
- Variable speed of the cooling fan.
- Compatible with the generators.
- Short circuit, overloading, output overvoltage and overheating protection.
- Can work in a wide range of ambient temperatures.
Safety classification EN 60335-2-29
EMC Class EN 55022/A
FCC TITLE 47 PART 15 SUBPART B CLASS A
EMC Class EN 55022/A
FCC TITLE 47 PART 15 SUBPART B CLASS A
The new SBC NRG+ battery chargers are more compact and equipped with connectors which make their connection easy and practical. Thanks to their efficiency (up to 92%), they are capable of offering a much lower consumption, a lower heat emission and a greater system’s reliability.
| Mini and Low Power models | SBC NRG 140 PLUS FR |
| Max output current (1) | 12 A |
| Charge absorption voltage | 14.1 Vdc OL • 14.4 Vdc SL/GEL/AGM • 14.7 Vdc Optima® |
| Charge float voltage | 13.4 Vdc OL - 13.6 Vdc AGM - 13.8 Vdc SL/GEL/Optima® |
| Number of outputs (2) | 2 |
| Supply voltage (3) | 264÷83 Vac con riduzione di potenza sotto 108 Vac |
| Frequency | 45 ÷ 66 Hz |
| Efficiency (3) | ≥ 83% |
| Max absorption (230/240 Vac) (3) | 0.9 A |
| Max absorption (120 Vac) (4) (*) | 1.7 A |
| Operating temperature | -15°C ÷ +70°C, con riduzione di potenza lineare sopra i + 45°C -4°F ÷ +158°F, with linear power reduction over +122°F |
| Noisiness | < 43 dbA @ 1 m |
| Dimensions W x H x D | 114 x 187 x 71 mm 4"31/64 x 7"23/64 x 2"51/64 |
| Weight | 1,1 Kg 2.42 lb |
| (1) | Maximum value at normal use or in short circuit. |
| (2) | Each output can supply the maximum value of nominal current. The sum of the currents supplied from each output can not exceed the maximum nominal value of the equipment. |
| (3) | With supply voltage equal to 230 Vac and output current equal to the maximum nominal value |
| (4) | With supply voltage equal to 120 Vac and output current equal to the maximum nominal value |
Dimensions
SBC 140 NRG+ FRDimensions in mm (inch)
