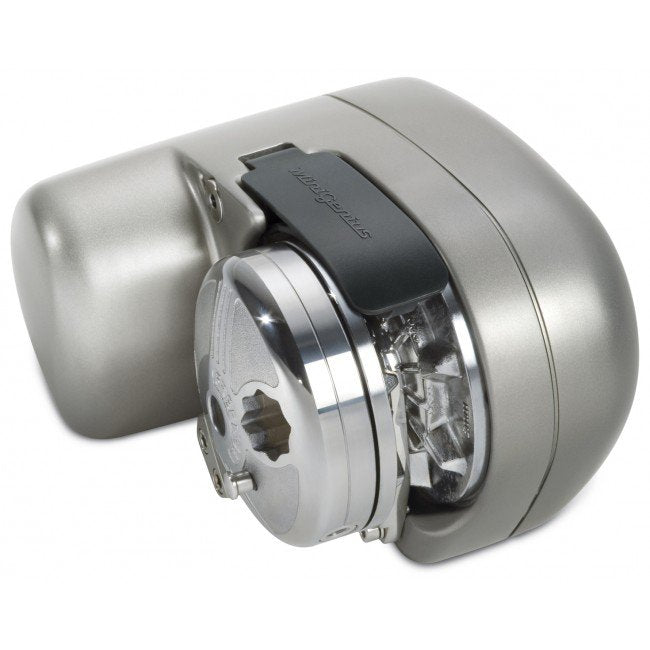

Quick Genius GP2 1500 500W Free Fall 12v 8mm
Disponible en précommande
Prix
€1.501,50 EUR
TVA incluse
Code fabricant
: GP21500F-8
Quick Genius GP2 1500 500W Free Fall 12v 8mm
- Horizontal on-deck windlasses
- Anodized alluminium in hard oxide base
- White composite material base (GP2 500)
- Rope and chain on a single gypsy
- Integrated sensor and magnet for chain counter
- Available with manual Free-Fall system (GP2 500 only manual)
- Supplied with pressure lever
- IP66 watertight motor
- Epicyclical gearbox (GP2 1500-2000)
Gypsy and Drum
Ø 105 mm / 4" 9/64
GP2 FF - Automatic Free-Fall System
 |  | The Free-Fall technology applied to the Genius windlass allows free running of chain through the gypsy when lowering the anchor; simply by depressing the down control button the windlass will release its clutch and the gypsy will freewheel. The Free-Fall function can be bypassed to facilitate power controlled release.
|
 |  |
For boats from 6 to 12 meters (20 - 39 ft)
 | 6 mm | 7 mm - 1/4" | 8 mm | 5/16" | |||||
 | 6 mm | 6 mm | 7 mm | 7 mm | 1/4" | 1/4" | 8 mm | 8 mm | 5/16" |
| DIN 766 | ISO | DIN 766 | ISO | G4 | BBB | DIN 766 | ISO | G4 | |
 | 1/2" (12,7 mm) | ||||||||
| Standard version | GP2 1500 / D - GP2 1500 FF |
| Motor power | 500 W |
| Motor supply voltage | 12 V |
| Maximum pull | 680 Kg / 1499 lb |
| Maximum working load | 250 Kg / 551 lb |
| Working load | 85 Kg / 187 lb |
| Current absorption @ working load (1) | 76 A |
| Maximum chain speed (2) | 25,5 m/min / 83.7 ft/min |
| Maximum chain speed @ working load (2) | 10,3 m/min / 33.8 ft/min |
| Weight without drum | 10,2 Kg / 22.4 lb |
| Weight with drum | 11,5 Kg / 25.3 lb |
| Weight with FF | 10,9 Kg / 24 lb |
| 1) | After an initial period of use |
| 2) | Measurements taken with a gypsy for a 8 mm chain |
