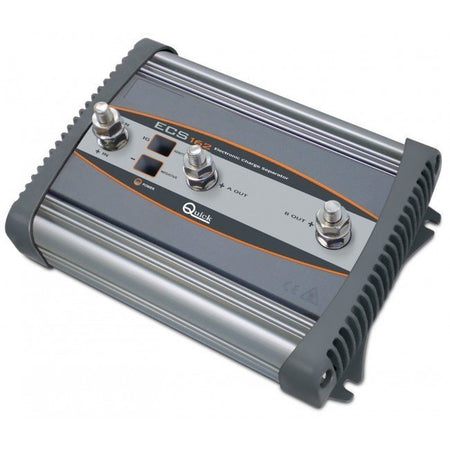

Quick ECS 162 Charge Separator 2 Outputs 160A
MPN: ECS162
The charge separator allows to increase the number of possible connections to the batteries, individually preserving each one’s charge, as usually occurs with multiple output battery chargers.
The Quick ECS charge separator has been built using MOSFET technology, which makes it possible to distribute the charge without harmful voltage drops.
Advantages
• Negligible voltage drop.
• Low power dissipation.
• Energy saving 6 times greater than the one given by traditional diode devices available on the market. • Capable of operating in a wide range of ambient temperatures.
• Suitable for both 12 and 24V operation automatically.
| Modelli / Models | ECS 162 | ECS 163 | ECS 222 | ECS 223 |
| Tensione in ingresso | Input voltage | 5 ÷ 31 Vdc | |||
| Caduta di tensione (1) | Loss of voltage (1) | < 0,2 Vdc (0,05 Vdc @ 20A) | |||
| Numero di ingressi | Number of inputs | 1 | |||
| Numero di uscite | Number of outputs | 2 | 3 | 2 | 3 |
| Corrente di carica da carica batteria (2) | Battery charger current (2) | 120 A | 180 A | ||
| Corrente di carica da alternatore (2) | Charge current from alternator (2) | 160 A | 220 A | ||
| Raffreddamento / Cooling | Naturale / Natural | |||
| Dimensioni L x A x P | Dimensions W x H x D - mm (inch) | 195 x 68 x 135 (10"23/32 x 19"1/2 x 5") | |||
| Peso | Weight | 1200 g / 2,64 lb | 1250 g / 2,75 lb | 1200 g / 2,64 lb | 1250 g / 2,75 lb |
(1) Valori tipici / Typical values. (2) Corrente totale massima ripartita sulle uscite / Total maximum current divided over output points.
